SG Iron Gauge Glass Valve

We are Manufacturer, Supplier, Exporter of Steel Fusible Plugs, Bronze Fusible Plugs, Cast Steel Blowdown Valve, SG Iron Gauge Glass Valve, Bronze Guage Glass Valve, and our setup is situated in Ahmednagar, Maharashtra, India.

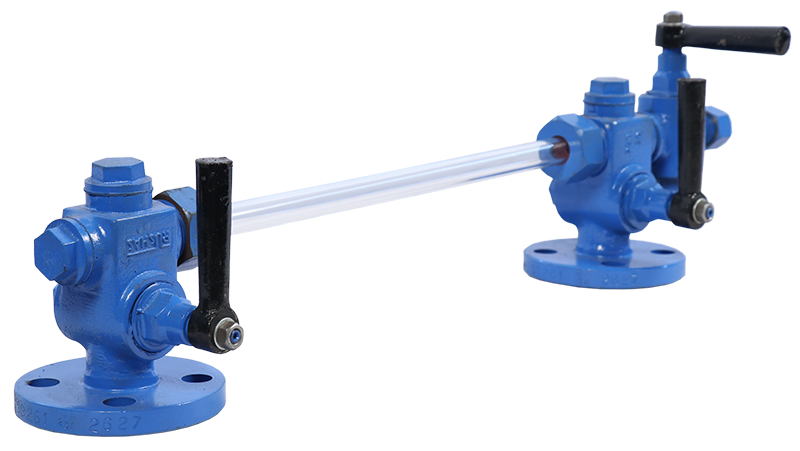

SG Iron Gauge Glass Valve

Request a Quote

We are Manufacturer, Supplier, Exporter of SG Iron Gauge Glass Valves ( Gauge Glass Valves ) and our setup is situated in Ahmednagar, Maharashtra, India.

SPECIFICATIONS

 Material SG Iron Is 1865
 End Connections  Flanged
 End Flanges  BS 10 Table-H
 Working Pressure  17.5 Kg/Sq.Cm. & Temp Up To 2250c
 Testing Pressure  35 Kg/Sq.Cm. Hydraulic
 Size  20 mm
SR. NO.  DESCRIPTION  MATERIAL
1  WATER ARM BODY SG IRON IS 1865
2  STEAM ARM BODY SG IRON IS 1865
3  DRAIN ARM BODY SG IRON IS 1865
4  SEAT SS 410 / SS 304
5  SPINDLE SS 410 / SS 304
6  DIAPHRAGM SS 410 / SS 304
7  BUSH C.F.T





DIMENSION

SIZE A B ├śC
mm mm mm mm
20 135 13 115
