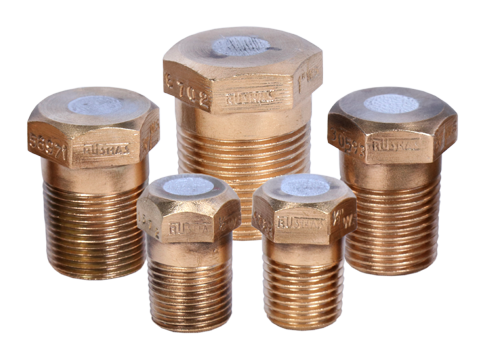

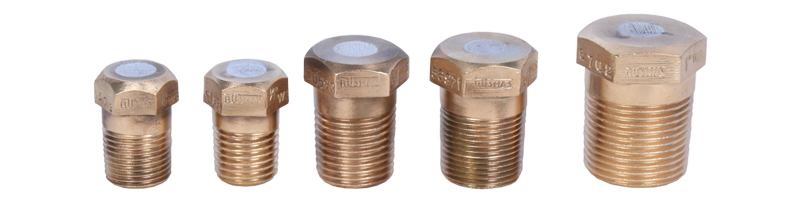

Bronze Fusible Plugs

We are Manufacturer, Supplier, Exporter of Steel Fusible Plugs, Bronze Fusible Plugs, Cast Steel Blowdown Valve, SG Iron Gauge Glass Valve, Bronze Guage Glass Valve, and our setup is situated in Ahmednagar, Maharashtra, India.

Bronze Fusible Plugs

Request a Quote

We are Manufacturer, Supplier, Exporter of Bronze Fusible Plugs ( Boiler Mountings ) and our setup is situated in Ahmednagar, Maharashtra, India.

ONE PIECE WATERSIDE / WET

SPECIFICATIONS

Material	Bronze (As Per IBR Reg. 282 (a) Gr. B)
End Connections	Screwed BSPT
Manufacturing Standard	As Per IBR 1950 cl 331-334
Testing Standard	As Per IBR 1950 cl 290 a
Certification	IBR approved
Sizes	½ inch -1 inch

TYPES

Size (inches)	Pressure (Kg/Cm 2)	Melting temperature
1	17.5	265
1	10.5	240
3/4	17.5	265
3/4	10.5	240
1/2	10.5	269
1/2	17.5	292

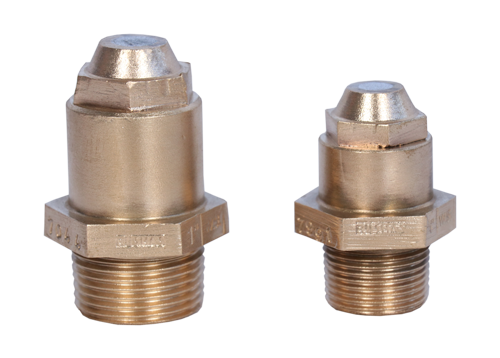

Bronze Fusible Plugs TWO PIECE WATERSIDE / WET

Request a Quote

TWO PIECE WATERSIDE / WET

SPECIFICATIONS

Material	Bronze (As Per IBR Reg. 282 (a) Gr. B)
End Connections	Screwed BSPT
Manufacturing Standard	As Per IBR 1950 cl 331-334
Testing Standard	As Per IBR 1950 cl 290 a
Certification	IBR approved
Sizes	3/4 inch -1 inch

TYPES

Size (inches)	Pressure (Kg/Cm 2)	Melting temperature
1	17.5	265
1	10.5	240
3/4	17.5	265
3/4	10.5	240

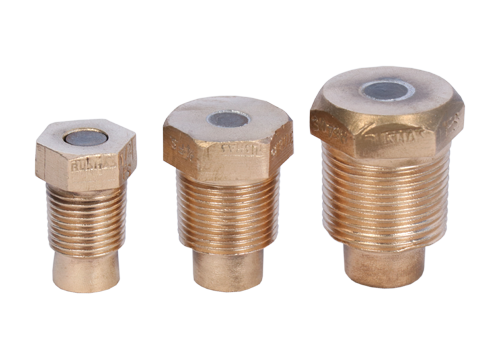

Bronze Fusible Plugs ONE PIECE FIRESIDE

Request a Quote

ONE PIECE FIRESIDE / DRY

SPECIFICATIONS

Material	Bronze (As Per IBR Reg. 282 (a) Gr. B)
End Connections	Screwed BSPT
Manufacturing Standard	As Per IBR 1950 cl 331-334
Testing Standard	As Per IBR 1950 cl 290 a
Certification	IBR approved
Sizes	1/2 inch -1 inch

TYPES

1	17.5	265
1	10.5	240
3/4	17.5	265
3/4	10.5	240
1/2	10.5	269
1/2	17.5	292
