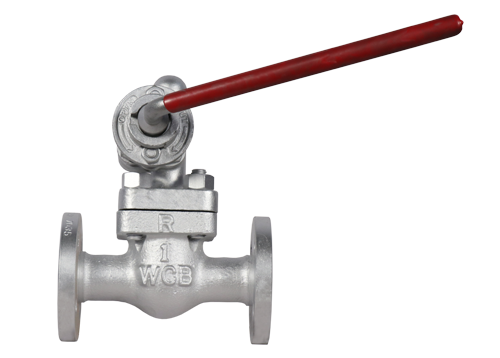

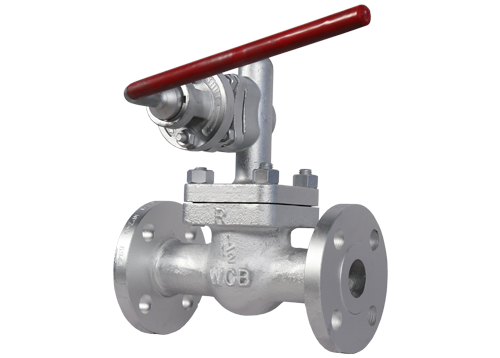

Cast Steel Blowdown Valve

(Class 300)

We are Manufacturer, Supplier, Exporter of Steel Fusible Plugs, Bronze Fusible Plugs, Cast Steel Blowdown Valve, SG Iron Gauge Glass Valve, Bronze Guage Glass Valve, and our setup is situated in Ahmednagar, Maharashtra, India.

Cast Steel Blowdown Valve

Request a Quote

We are Manufacturer, Supplier, Exporter of Boiler Mountings like Cast Steel Blow Down Valves ( CS Blow Down Valves ) and our setup is situated in Ahmednagar, Maharashtra, India.

SPECIFICATIONS

Material	Cast Steel
End Connections	Flanged
End Flanges	Ansi B - 16.5, B.S.10 Table - J
Face To Face	Ansi B - 16.10
Working Pressure	Class 300 - 52.02 Kg/Sq.Cm.
Testing Pressure	Class 300 - 104.04 Kg/Sq.Cm. Hydraulic
Manufacturing Standards	Api 602
Testing Standards	Bs 6755 Part - I
Size Range	1, 1 1/2, 2 Inch

Request a Quote

Part Name	Material
Body	ASTM A 216 Gr. Wcb
Bonnet	ASTM A 216 Gr. Wcb
Rack	SS 410
Gland Flange	ASTM A 216 Gr. Wcb
Pinion	SS 410
Seat	SS 410
Diaphragm	SS 410
Spring	Spring Steel
Seat & Diaphragm Facing	Stellited
Stuffing Box	ASTM A 216 Gr. Wcb
Gland Packing	Graph Non Asb With Sacrifical Inhibitor & Inconel Wire Reinforcement
Gasket	SPW S/S 304 With CAF

DIMENSION

Size In Inch	Flanges	A	ØB	C	T
1	ANSI Class 300	203	124	198	17.5
1	Table–J	203	121	198	20
1 1/2	ANSI Class 300	267	155.5	245.5	20.5
1 1/2	Table–J	267	140	245.5	22.2
2	ANSI Class 300	305	165.1	289.5	22.23
2	Table–J	305	165.1	289.5	25.4
