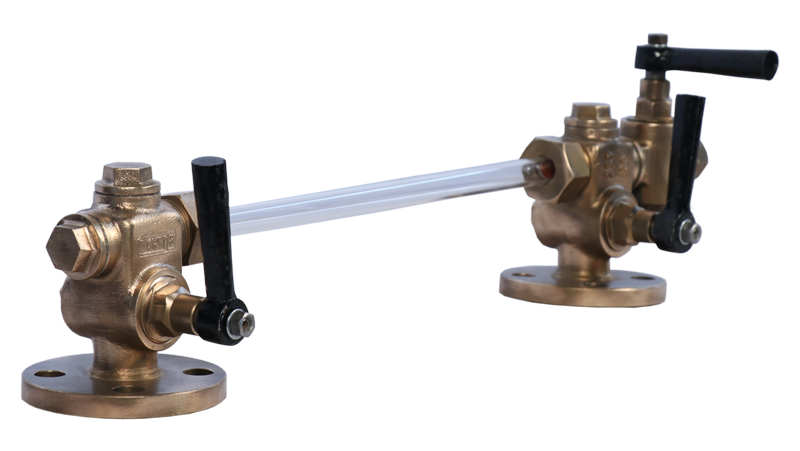

Bronze Guage Glass Valve

We are Manufacturer, Supplier, Exporter of Steel Fusible Plugs, Bronze Fusible Plugs, Cast Steel Blowdown Valve, SG Iron Gauge Glass Valve, Bronze Guage Glass Valve, and our setup is situated in Ahmednagar, Maharashtra, India.

We are Manufacturer, Supplier, Exporter of Boiler Mountings like Bronze Gauge Glass Valves and our setup is situated in Ahmednagar, Maharashtra, India.

SPECIFICATIONS

Material	Bronze
End Connections	Flanged
End Flanges	BS 10 Table-H
Working Pressure	17.5 Kg/Sq.Cm. & Temp Up To 2250c
Testing Pressure	35 Kg/Sq.Cm. Hydraulic
Size	20 Mm

SR. NO.	DESCRIPTION	MATERIAL
1	WATER ARM BODY	BRONZE (IBR 282 A GRADE B)
2	STEAM ARM BODY	BRONZE (IBR 282 A GRADE B)
3	DRAIN ARM BODY	BRONZE (IBR 282 A GRADE B)
4	SEAT	SS 304
5	SPINDLE	SS 410
6	DIAPHRAGM	SS 304
7	BUSH	C.F.T.

DIMENSION

Size	A	B	ØC
mm	mm	mm	mm
20	135	13	115
